High Speed Cassate Type Single Facer for easy change of flute rollsRegular price Rs. 6,500,000.00

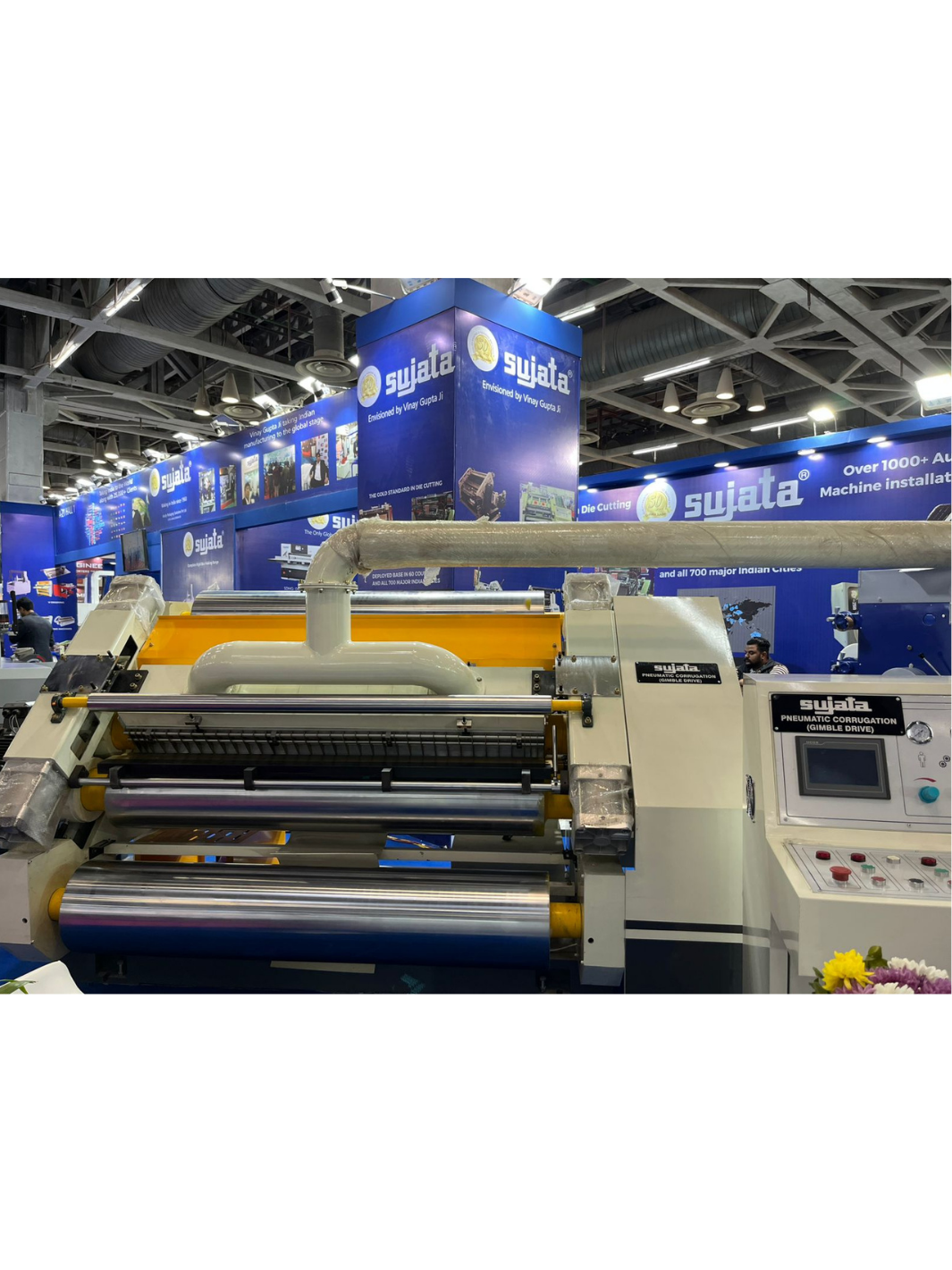

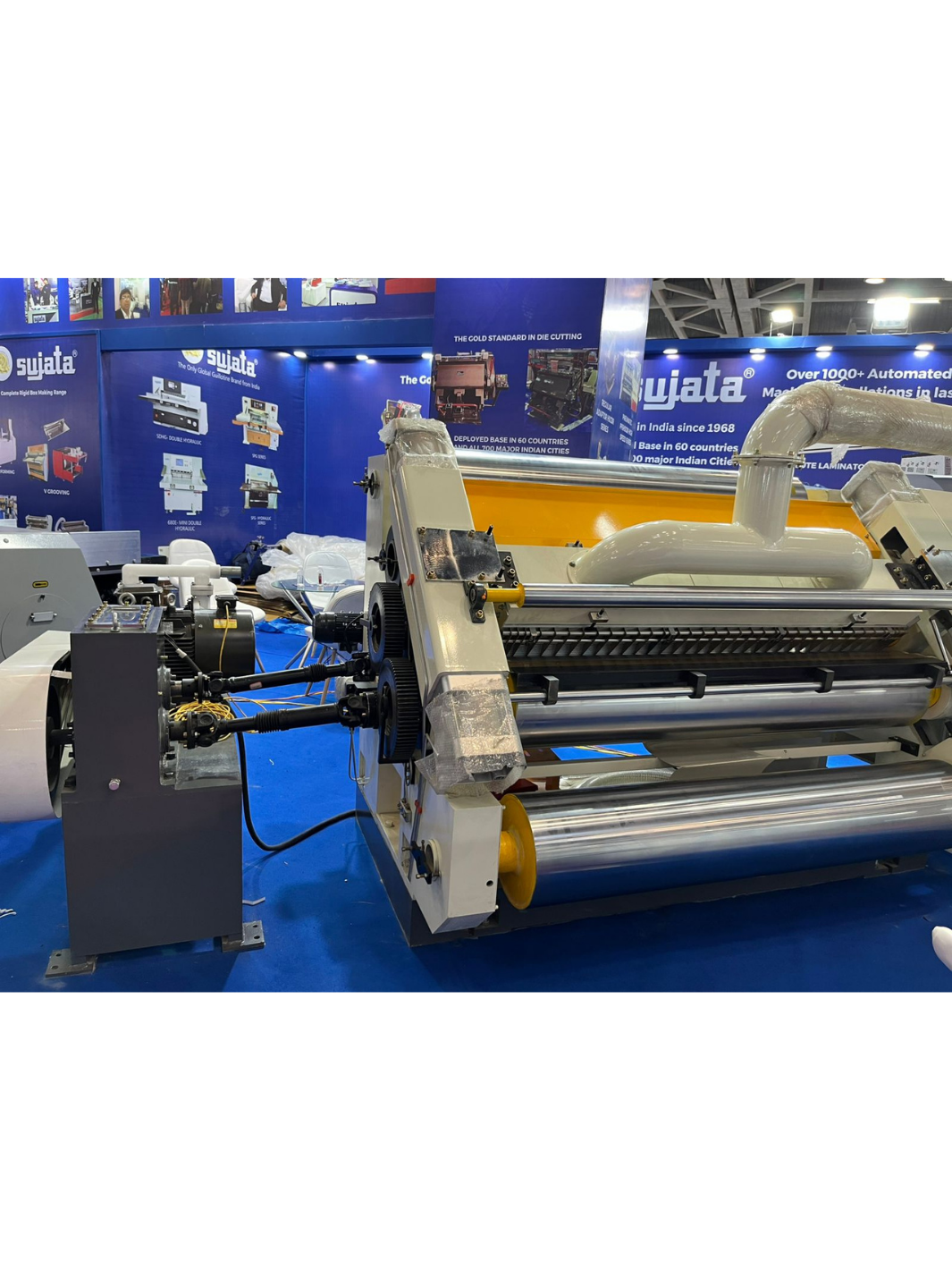

D 320 High Speed Cassate Type Single Facer for easy change of flute rolls
- design speed:150 m/min.
- Effective Width:1400 - 2500 mm.
- Main shocked roll: ¢ 320 mm (according to differ flute), pressure roller ¢ 365 mm, preheat roll ¢ 400 mm.
- The negative pressure design, low heat dissipation, so that pressure can be evenly core paper and attached to the corrugated roller surface, so corrugated better shape, because the pressure evenly, corrugated top better, evenly coated with glue, so one-sided corrugated fit the situation better.
- quick roll change, 15 minutes, in order to replace the Corrugated trolley trailer containing the entire set of corrugating to motor drive, into the machine, fixed on the machine base, quickly and easily complete Corrugated replacement.
- Corrugated use 48CRMO quality alloy steel, heat treatment, surface after grinding hard chrome plating or tungsten carbide processing.
- corrugating roll and pressure roll or the like using the airbag control system having high stability, but also has to control the pressure buffering effect.
- glue volume control with electric adjustment, electric, every plastic, adhesive systems can be independent when the host stops running, prevent the glue dry.
- mobile systems on the glue, in addition to easy to clean, but more conducive to maintenance and repair work.
- Simple operation control system, touch screen interface, with color drawings display simple, user-friendly.
- Built-in pre-conditioner with a spray system, temperature and moisture regulating core paper.
- pressure roller bearings are used in high-temperature grease to ensure the bearing life, running smoothly.
